Breakout-Session-Box

Content not available.
Please allow cookies by
clicking Accept on the banner

spread displayed as an additional box
verify the effectiveness of indicators
periods adaptable to trading habits
5 boxes are individually adjustable
can be used as break-out boxes
5 preset profiles outbreak
4 preset session profiles
GMT-Shift

Manual 2019 - download here:

Download Now!

Momentum - Solo

Content not available.
Please allow cookies by
clicking Accept on the banner

Momentum-Solo, a simple strength Informer

PSAR-filter
correlation-filter
close to trend-filter
no cross-over signal
ma-filter, ma-channel-filter
signal after close, no repaint
alert / send email / push-notification
screenshot

Advantages

timeframes M5 to D1
all Instruments possible
several periods of sideways movement will be hidden
send custom email header and content (to your Blog?)
involve one or two other correlating Instruments as a filter
the indicator will inform about strength in the appropriate direction
switch to strong Momentum / higher probability in non-trend situations
it is based on a minimum candle size and candle body in relation to the ATR
all Filters are based on movering averages and if you like MACD, no complecated Oscillators

Important rule

looking on a higher timeframe for an instrument with an obvious upcoming movement in a clear direction

Update Vers. 19.51

here comes the best Momentum-Solo update for a long time, ready settings via menu to trading-strategies from my pages,

• 4. (moving average) ctt MA-Filter
• close to trend Line moved to ctt-settings
• added "Profil-menue"
- 200 sma
- 200 sma / 50 sma crossover
- 8, 13, 20 ema
- 12 ema-Channel, no cross-over
- 12 ema-Channel, shift 36
- 10, 50 ema - 200 sma
- H4 60 ema h/l, close to Trend 0, 60ema
- H1 60 ema h/l, close to Trend 0, 20ema

Demo-Post live from my MT4 EST

March 31, 2020 6:01 am

Comments

2020.3.31. 13:0:0 MT4 Momentum solo Activity, UK_100e

UK_100e, H4 1. Arrow => up 5733 Demo-Account, Demo-Settings, no Signal! 2020.3.31. 13:0:0 https://clausforex.com/ ...

Momentum-Solo, Vers.19.51, description-list for all parameters

Momentum-Solo is a simple momentum Informer

The indicator will inform about strength in the appropriate direction
It is based on a minimum candle size and candle body in relation to the ATR

always look for the strongest and weakest currency with the heatmap before start Momentum-Solo

Filter

PSAR => arrows in PSAR direction only
MA, MA-Channel => Trend- and Sideway-Filter
MACD => short signals below 0, long signals over 0, Divergence - static value X (candles before momentum)
RSI level above X / below X, (0-100), default 50, Divergence - static value X (candles before momentum)
Close to Trend => avoids too many signals while the trend runs, use 3 active variables at the same time
Correlation => signals only when a second, or a third instruments moves in the same direction

Alerts

alert, push-notification, arrows, send 2 different emails, screenshot

Advantages

Signal after close, no repaint, no cross-over signal
Timeframes M5 to D1
All instruments supported
It is based on relation to the ATR
Send custom email header and content
Several periods of sideways movement will be hidden
Involve one or two other correlating instruments as a filter
The indicator will inform about strength in the appropriate direction
All filters are based on moving averages, and if you like, MACD, RSI or PSAR

Settings

Bars to process - the number of bars of the chart you want to be involved - from 60 to 1000 might be fine.
show Vola today, Spread, Countdown - if true, it shows information of the Vola today, the current spread and the countdown of the current period.
Trading-Strategies (https://forex-index-intraday.com/trading-strategies/)
- custom Settings, no Strategie
- 200 sma
- 200 sma / 50 sma crossover
- 8, 13, 20 ema
- 12 ema - Channel, no Cross-Over
- 12 ema - Channel, Shift 36
- 10, 50 ema - 200 sma
- H4 60 ema h/l, close to Trend 0, 60ema, 200sma
- H1 60 ema h/l, close to Trend 0, 20ema, 60ema, 200sma
Alert - activates the alert-pop-up-window.
Alert - the chosen info will be in the header and the first line of an email, if Email.
Email-A Email-B - if true, it shows the selected info in header and the first line of the email.
- Date first in Header
- Time first in Header
- Date & Time first in Header
- Date in 1. Line, in Email
- Time in 1. Line, in Email
- Date & Time in 1. Line, in Email
Notification - if true, it sends the alert to the MT4 APP of your smartphone.
Screenshot - if true, it sends the alter with a screenshot to ...MetaTrader 4MQL4Files.
show first Alert-Arrow only "Live-Setting" - if true, there is no history arrow, only the first upcomming arrow of the trend-direction will apaer and stay, as long as the timeframe and instrument won't be changed.
show Arrows - if true, it shows the chosen arrows only.
- Arrows, up and down
- Arrows up
- Arrows down
Trend-Strength - pre-defined ema with different settings provide the filter for the momentum.
- Trend, non
- Trend, normal 8ema 13ema 20ema
- Trend, stronger 8ema 13ema 20ema 36ema
- Magic, shifted Trend (similar to Hurst) 1sma shift36
very strong Momentum - if true, the momentum stands for solid candles and almost no wicks.
Trend MA - Value of the MA-filter
- MA Shift - Value of the Shift for the MA-filter
- MA Mode - mode for the MA-filter
- MA Price long - price for the upwards direction of the MA-filter
- MA Price short - price for the downwards direction of the MA-filter
Trend MA II - Value of the MA-filter II
- MA Shift - Value of the Shift for the MA-filter II
- MA Mode - mode for the MA-filter II
- MA Price long - price for the upwards direction of the MA-filter II
- MA Price short - price for the downwards direction of the MA-filter II
Trend MA III - Value of the MA-filter III
- MA Shift - Value of the Shift for the MA-filter II
- MA Mode - mode for the MA-filter II
- MA Price long - price for the upwards direction of the MA-filter III
- MA Price short - price for the downwards direction of the MA-filter III
Correlation I - the name of the instrument you want to compare
Correlation IT - the second name of the instrument you want to compare
- Correlation Trend MA - Value of the Correlation - MA-filter
  - Correlation MA Shift - Value of the Shift for the Correlation - MA-filter
  - Correlation MA Mode - mode for the Correlation - MA-filter
  - Correlation MA Price long - price for the upwards direction of the Correlation - MA-filter
  - Correlation MA Price short - price for the downwards direction of the Correlation - MA-filter
MACD Divergence-Filter - Divergence with static value X (candles before momentum), works with trend and inverse-trend setting
- Filter off - Filter off / on
  - MACD fast EMA - value of the fast ema
  - MACD slow EMA - value of the slow ema
  - MACD shift - Divergence-Reference, X candles before momentum
MACD Trend-Direction - set the direction of the filte
- Filter off - Filter off
  - MACD in Trend-Direction - downwards-arrow below 0, upwards-arrow above 0
  - MACD inverse Trend-Direction - downwards-arrow above 0, upwards-arrow below 0 (experimental, not reliable for reverse)
- MACD fast EMA - value of the fast ema
- MACD slow EMA - value of the slow ema
RSI Divergence-Filter - Divergence with static value X (candles before momentum)
- Filter off - Filter off / on
  - RSI Period - value of the period
  - RSI Price - apply to price
  - RSI shift - Divergence-Reference, X candles before momentum
RSI Level-Filter - RSI level above X (0-100) and below X (0-100), default 50
- Filter off - Filter off / on
  - RSI Period - value of the period
  - RSI Price - apply to price
    - RSI level - RSI above, for long
    - RSI level - RSI below, for long
    - RSI level - RSI below, for short
    - RSI level - RSI above, for short
Momentum close to Trend only - if true, shows arrows close to the MAs that are predefined in the settings below.
- Trend plus % of ATR - the value of the distance from the MAs to the candle will be calculated by the size of the current ATR in the current period.
  - MAs close to trend - the candle need to touch at least one of the MAs
  - MA I close to trend - Value of the close to trend MA-filter I default value 8
  - MA I close to trend - mode for the close to trend MA-filter I
  - MA II close to trend - Value of the close to trend MA-filter II default value 13
  - MA II close to trend - mode for the close to trend MA-filter II
  - MA III close to trend - Value of the close to trend MA-filter III default value 20
  - MA III close to trend - mode for the close to trend MA-filter III
  - MA IV close to trend - Value of the close to trend MA-filter IV default value 20
  - MA IV close to trend - mode for the close to trend MA-filter IV
Parabolic Sar filter - an Momentum-arrow occurs in the PSAR-direction only, good values 0.02 / 0.02
- Parabolic Sar Step - value for Step
- Parabolic Sar maximum - value for Maximum
Arrow Style - choose a arrow-style = thin, cross, normal, hollow, Thumbs, Triangle
Arrow Position - default ist 0.6 / nice to have, if you compare settings with a second / third indicator
Screenshot-Picture will be saved in ...MetaTrader 4MQL4Files.
- Screenshot-Picture height - default is 720
- Screenshot-Picture width - default is 1280
  - Screenshot-Picture => short Comment - this is for an additional comment for the file-name of the picture
Alert, Email A/B, Notification => short Comment - this is for an additional comment
Account Company => Account Description in email / default = your Broker
Email-/Header/-Content - choose what you need
- default Email-/Header/-Content - system default information
- custom Email-/Header/-Content
  - Email Header, long - message for upwards arrows only, change this text for your needs
  - Email Header, short - message for downwards arrows only, change this text for your needs
  - Email Content, long - message for upwards arrows only, change this text for your needs
  - Email Content, short - message for downwards arrows only, change this text for your needs
send High/Low Value to all receivers
- send no Value - no Price will be send to any alert
- send High/Low Value - high- or low- Price of the Momentum-Candle will be send in all alerts, alert, send email, push-notification and screenshot
  - example: AUDUSD, H1 1.Arrow => up 0.71046 Demo-Accou...

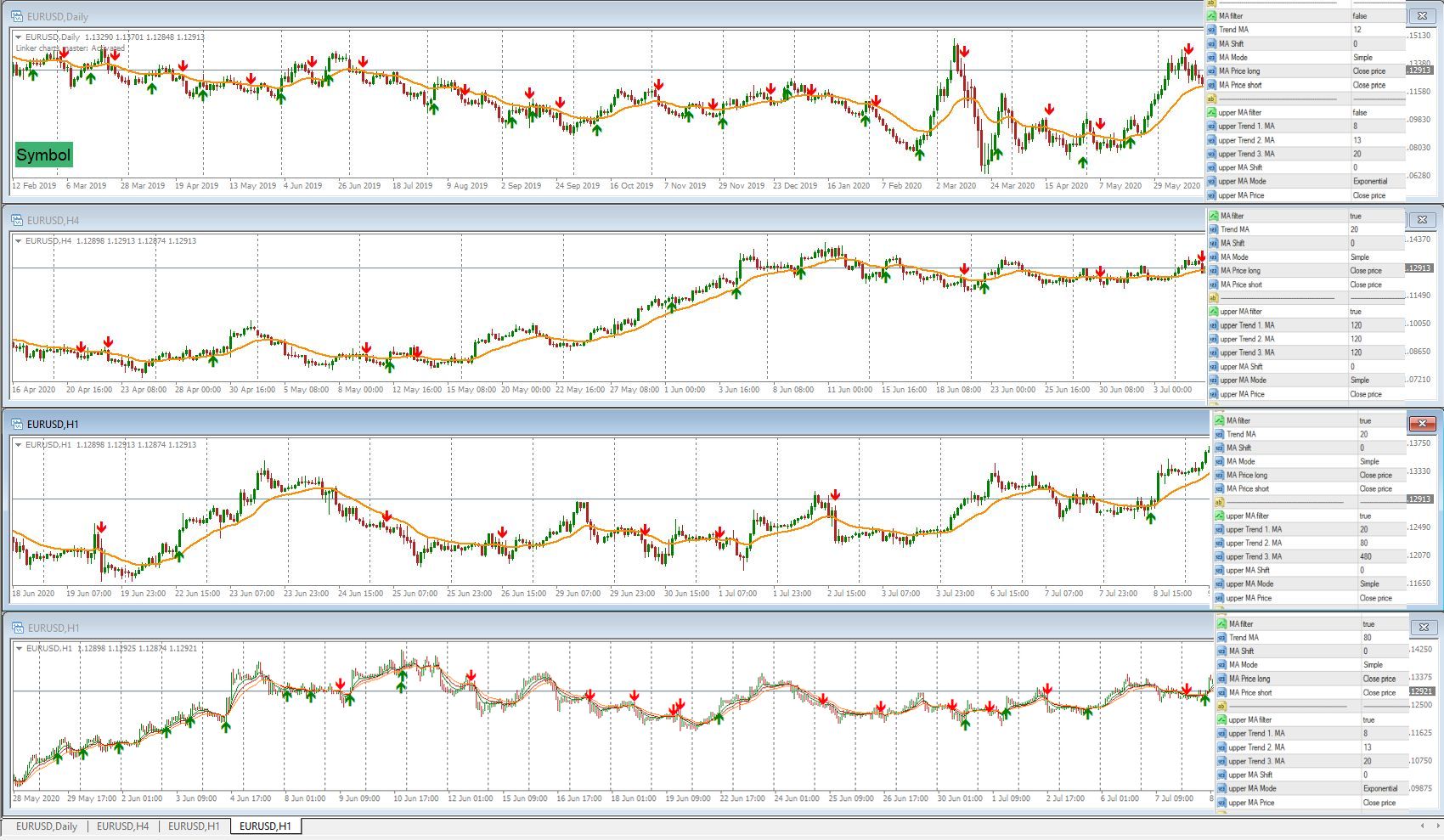

Parabolic-Sar plus

Content not available.
Please allow cookies by
clicking Accept on the banner

Parabolic-Sar plus

Trend-Filter
MA, MA-Channel (high / low)
alert, push-notification, arrows, send email

Advantages

Signal after closing price
no crossover signal
no repaint
best time frame: H1
all major forex pairs
individual e-mail header

Important rule

instrument with an obvious upcoming movement in a clear direction on a higher timeframe only
entry after an arrow => waiting for the pull back or wait for a second higher / lower candle, plus / minus a few pips.
alternative entry: the last point of the Parabolic-SAR
exit example => major fibonacci and dynamic support / resistance lines, use the same to move your stop and for taking first profits.
if the trade still runs, ignore further arrows, when trendfilter is active
SL below / above the second higher / lower candle.

Reversal-Indicator

Content not available.
Please allow cookies by
clicking Accept on the banner

If it would be just a classic candlestick pattern, it would generate much more false signals. The most important filter is the candle itself. The strengths of the candle is adjustable! All important ratios of the candle are adjustable, the wicks will be ignored. The ratio-calculation for the candle is based on the ATR-value (default is 20, it's also adjustable). The confirmation-candle needs to run at least a value of X% of ATR20-value (ATR20-value from current timeframe) If you like to set a trend filter (ma, pivot, kijun-sen), choose the value and the direction => with the trend or against the trend => signals in both directions are possible. When the confirmation-candle reaches its value, it won't disappear (no repaint).

Features: Features: alert, send email, push notification, screenshot, 2 alert-sessions (from - to), test-modus (use a second ind. and set test_mode true, it will move the arrows and change the colors => perfekt to compare different settings).

Manual 2017 - download here:

Download Now!

Reversal-Trend-Indicator

Content not available.
Please allow cookies by
clicking Accept on the banner

It is basicly the same as the Reversal indicator

but with fix settings, no additional settings necessary

works on: Major Forex-pairs / M15 and higher timeframes

works on: Major Forex-pairs / M15 and higher timeframes

arrows appear after Reversal-Pattern and when the confirmation-candle reaches its value, it won't disappear, no repaint.

The Value to move = 20% of ATR20 from current timeframe;

nevertheless there is always a risk, the pattern is just a chance of a reverse, only a chance, please do not forget this,at least watch the upper timeframes, the last 10 arrows of replicability and calculate your risk carefully;

Price-Infos | Heatmap

Chart-Infos MT4 Indicator kosten free clausforex.com

please open in separate chart-window, all settings of the chart-window are changed and not reset when the indicator is removed from the chart-window;
all areas are switchable
Volatility of the last 5 days in relation to the ATR20, calculation is based onD1
Volatility of the current day
trend-movement of all time-frames M1 to MN, trend-base is 12 sma
ATR 40 - value of the current chart (popular for example for SL / TP)
ATR 4 - Current chart value (popular for e.g., SL / TP)
current spread in pips in relation to the daily ATR20 in percent
current shortswap / longswap
Max. Position size in XX pips SL and 5% risk calculation on account equity
current period - countdown
Trend-Heatmap of major currency pairs
the current swap of all major currency pairs shortswap / longswap

MT4 Price-Infos - download here:

Download Now!

Heat Map Vers. 20.1

Trend direction of the closing price of the previous period
the trend direction is defined by the "MA for Heat Map"
the heat map turns off all other sections of the info, even if they are true
the timeframe can be fix, M1 to MN or "current", than the timeframe of the chart window is crucial
Trend direction is always based on the closing price of the last period, according to the timeframe heatmap
however, if "Shift" is set to 0, the current tick price will serve the heatmap
above the small table the current settings for the heatmap are displayed
displayed in X & O based on Point & Figure ( but it has nothing to do with P&F)
Shift = 1 => previous day; Shift => number of closed periods before the current period, according to the "timeframe heatmap"
hot - the strongest bullish and bearish currency will be marked
b|b - bullish | bearish, is the trend strength that I calculate depending on the trend direction compared to other currencies

Gap-Indicator

Vers. 20.1

closure or not, here you can quickly get an overview of an instrument, how reliable the gap might be
reference of the gap is the ATR
all details can be set individually

MT4 Gap-Indikator - download here:

Download Now!
